Overview of Graphite Materials’ Applications:

Graphite, as a critical material, is widely used across various industrial fields. Its excellent thermal conductivity makes it indispensable as a heat dissipation material in the electronics industry, used extensively in chip and electrode manufacturing. The corrosion resistance and high strength of graphite make it suitable for producing lightweight structural components and protective materials in aerospace applications. In the nuclear industry, graphite serves as a neutron moderator and structural material due to its low absorption cross-section and high-temperature stability. Additionally, with the rise of electric vehicles, graphite is used in the manufacture of high-performance battery anodes. These properties highlight the increasing importance of graphite in industrial applications.

Technical Challenges of Cutting Graphite:

The primary challenges in processing graphite are related to its physical properties. First, graphite’s brittleness and fragility make it prone to chipping and cracking during mechanical processing, leading to material waste and workpiece damage. Second, graphite’s low hardness and layered structure exacerbate wear during processing, increasing the difficulty of precision control. Additionally, the non-conductive nature of graphite precludes the use of traditional Electrical Discharge Machining (EDM) techniques, which rely on conductive materials for electrical erosion cutting. Thus, there is an urgent need for more efficient processing technologies, such as closed-loop diamond wire cutting, to address these challenges and meet the growing demand for high-precision graphite processing.

Limitations of Traditional Cutting Technologies

• Overview of Electrical Discharge Machining (EDM):

Electrical Discharge Machining (EDM) is a precision processing technology that erodes conductive materials through electrical discharge. The process involves a thin metal wire (typically brass or molybdenum) serving as an electrode, through which high-frequency pulse currents are applied between the workpiece and electrode to generate micro-electric sparks. These sparks create localized high temperatures on the workpiece surface, melting and vaporizing the metal material, thus removing it layer by layer for precise cutting. Since this technology does not apply mechanical force, it can cut complex geometries and extremely hard metal materials, making it widely used in high-precision metal processing fields such as mold manufacturing, aerospace, and medical devices.

• Special Characteristics of Graphite Materials:

The physical and electrical properties of graphite determine that traditional wire cutting methods are unsuitable, particularly due to:

1. Non-Conductivity: Traditional EDM relies on the conductivity of the workpiece for electrical discharge erosion. Graphite, being non-conductive, cannot be cut by EDM, making this method ineffective for graphite processing.
2. Brittleness and Fragility: Graphite’s brittleness and layered structure cause it to easily chip and crack under mechanical force. In traditional mechanical cutting, the cutting force concentrates on weak areas of the material, leading to crack propagation and material damage. This brittleness makes it challenging to maintain the material’s shape during processing, especially in high-precision applications.
3. Material Waste: Due to graphite’s fragility and chipping during processing, traditional mechanical cutting often results in significant material waste. Additionally, the cutting process generates many small debris particles, further increasing material waste and processing costs. This is a substantial economic burden, especially for expensive or scarce graphite materials.

These characteristics make traditional wire cutting methods ineffective for efficient and precise graphite cutting. Therefore, there is an urgent need for alternative technologies capable of addressing these challenges, such as the endless diamond wire cutting technology, which overcomes the limitations of traditional methods through physical cutting and provides efficient and precise processing for graphite materials.

Breakthroughs in Endless Diamond Wire Cutting Technology

Introduction to the Technology:

Endless diamond wire cutting technology is an efficient processing method based on physical cutting principles, particularly suited for non-conductive materials like graphite. The basic principle involves using a closed-loop diamond wire, which continuously runs at high speed in one direction, cutting the material through the hardness and abrasive action of diamond particles.

Unlike EDM, diamond wire cutting does not rely on electrical discharge but on physical friction and abrasion to shape the material. The diamond wire is composed of steel wire embedded with diamond particles. The extremely high hardness of diamonds enables cutting of hard materials like graphite while maintaining high precision and surface quality.

With the continuous, unidirectional operation of the endless diamond wire, cutting speed is significantly high, greatly improving processing efficiency. Moreover, the physical cutting avoids heat-affected zones, resulting in a smoother cutting surface without the wire marks and thermal damage common with electrical discharge cutting.

This technology is especially suitable for graphite processing as it is not limited by material conductivity and effectively addresses graphite’s brittleness, reducing chipping and material waste, making it an ideal choice for graphite processing.

1. Material Properties of the Diamond Wire:

The endless diamond wire consists of a high-strength steel core coated uniformly with diamond particles. These diamonds, either natural or synthetic, are the hardest materials in nature, capable of cutting almost any hard material, including graphite, ceramics, glass, and various composites.

– **Hardness of Diamond Particles:

With a Mohs hardness of 10, diamonds can effectively cut hard and brittle materials like graphite, ensuring efficient cutting.

– **Wear Resistance:**

The high wear resistance of diamond particles allows the wire to maintain excellent cutting ability over long periods of high-speed operation, extending the tool’s lifespan.

2. Closed-Loop Design:

The “endless” design of the diamond wire forms a closed-loop, typically ranging from a few meters to several tens of meters in length. Unlike traditional wire cutting equipment, the closed-loop design eliminates the need for the wire to change direction during cutting, offering several advantages:

– **Continuous Cutting:**

The diamond wire operates in a fixed direction and high speed, allowing uninterrupted cutting and significantly improving efficiency.

– **Uniform Wear:**

The unidirectional operation results in more even wear of the diamond particles, avoiding the uneven wear caused by frequent direction changes in traditional cutting.

– **Stability:**

 The closed-loop design ensures stable tension of the diamond wire, minimizing vibrations and deviations during cutting, thus enhancing precision and surface quality.- **Continuous Cutting:** The diamond wire operates in a fixed direction and high speed, allowing uninterrupted cutting and significantly improving efficiency.

– **Uniform Wear:**

 The unidirectional operation results in more even wear of the diamond particles, avoiding the uneven wear caused by frequent direction changes in traditional cutting.

– **Stability:**

The closed-loop design ensures stable tension of the diamond wire, minimizing vibrations and deviations during cutting, thus enhancing precision and surface quality.

3. Cutting Speed:

Endless diamond wire cutting achieves line speeds of several tens of meters per second, generally around 80 meters per second. The high-speed diamond wire continuously removes material through the sharp edges of the diamond particles.

– **High-Speed Cutting:**

The high cutting speed significantly increases material removal rates and reduces processing time, making it particularly suitable for large-scale production requiring efficient cutting.

– **Reduced Thermal Impact:**

The physical cutting process generates less heat compared to thermal erosion, preventing thermal deformation or damage to materials like graphite.- **High-Speed Cutting:** The high cutting speed significantly increases material removal rates and reduces processing time, making it particularly suitable for large-scale production requiring efficient cutting.

4. Cutting Precision:

Endless diamond wire cutting technology offers extremely high cutting precision, attributed to the wire’s high strength, precise tension control, and uniform abrasive action.

– **Precise Tension Control:**

Accurate adjustment of tension in the closed loop ensures stability of the diamond wire during cutting, maintaining path accuracy.

– **High Surface Finish:**

 The fine cutting by diamond particles results in very smooth surfaces, free from common blade marks and burrs found in traditional mechanical processing.

– **Micro-Machining Capability:**

The fine wire diameter (usually between 0.3 mm to 0.8mm) allows for micro-machining, suitable for high-precision and complex geometric shapes.

5，Cutting Process Overview:

1. **Material Fixation:** Securely fix the graphite material on the worktable to prevent movement during cutting.

2. **Diamond Wire Preparation:** Select the appropriate diamond wire based on material hardness, thickness, and desired surface finish.

3. **Setting Cutting Parameters:** Set suitable line speed, feed rate, and tension control parameters based on material characteristics and processing requirements.

4. **Start Cutting:** The diamond wire runs continuously at high speed, cutting the graphite material layer by layer with physical abrasion.

5. **Quality Control:** Monitor parameters such as wire tension, cutting depth, and speed in real-time to ensure cutting precision and surface quality.

6. **Complete Cutting:** Stop the equipment, clean the cutting surface, and perform a quality check to ensure the workpiece meets design specifications.

Endless diamond wire cutting technology provides a reliable solution for precise and efficient processing of complex materials, overcoming the limitations of traditional cutting methods.

Graphite Wire Cut Processing Advantages Analysis:

Endless diamond wire cutting technology offers several significant advantages due to its unique cutting principles and design, making it particularly suitable for high-precision and complex material processing. Key advantages include:

    1，High Cutting Speed:

The technology allows cutting at extremely high line speeds (usually up to 80 meters per second or more), significantly improving processing efficiency. High-speed diamond wire cutting quickly removes material, reducing processing time, especially in large-scale production scenarios. Compared to traditional mechanical and EDM cutting methods, endless diamond wire cutting greatly enhances production efficiency.

    2，Superior Surface Finish:

The physical abrasion method of diamond wire cutting achieves a very high surface finish. The even removal of material by diamond particles eliminates heat-affected zones and blade marks, resulting in a smooth, flat surface. This high-quality surface treatment reduces subsequent processing steps and is suitable for precision tasks with strict surface quality requirements.

   3，Reduced Material Waste:

Endless diamond wire cutting produces less material waste during cutting. Its efficient cutting ability and high precision help retain maximum material, reducing scrap and loss. This advantage is particularly significant when processing high-value materials like graphite and optical glass, where material conservation is crucial.

  4，Versatility:

The technology is adaptable to a wide range of materials beyond graphite, including silicon, ceramics, glass, and other hard or brittle materials. This versatility makes it suitable for various applications in electronics, aerospace, and optical industries, providing broad applicability and value.

   5，Minimized Heat Generation:

Endless diamond wire cutting minimizes heat generation during the cutting process, avoiding thermal damage to the material. The physical cutting action of diamonds generates minimal heat, preventing heat-induced deformation and ensuring the integrity of the material structure, particularly important for heat-sensitive materials.

   6，High adaptability to complex geometries:

The precise control of diamond wire tension and cutting parameters enables accurate processing and high precision. The uniform abrasion provided by diamond particles ensures consistent cutting performance and minimal deviation, suitable for micro-machining and complex geometries.

Application Examples of Graphite Wire Cut

 Typical Application Scenarios: Endless diamond wire cutting technology demonstrates great potential in the processing of graphite materials, especially in several key application scenarios. Below are some typical applications of graphite materials and the practical use of endless diamond wire cutting technology in these scenarios:

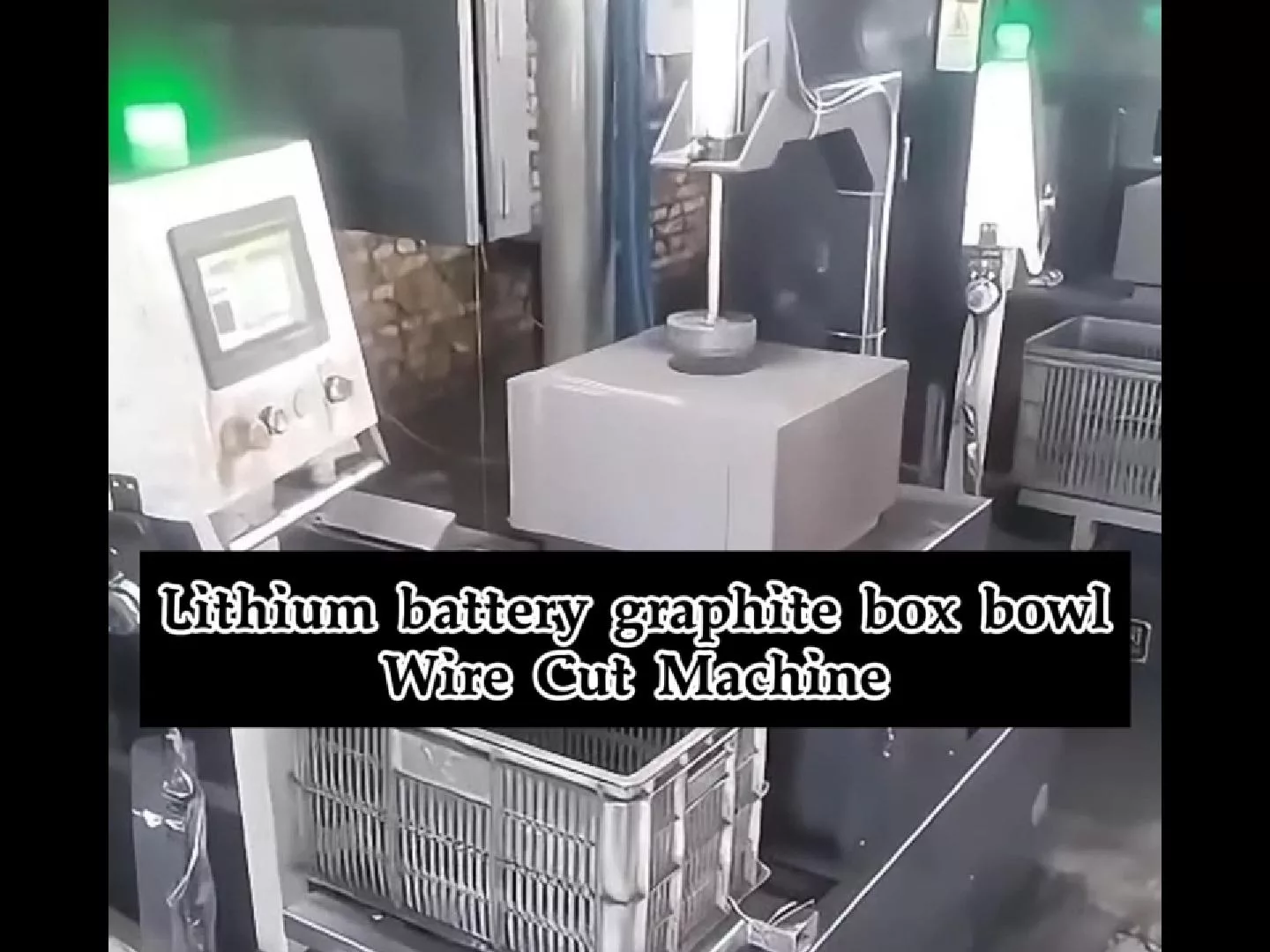

1. Graphite Electrode Manufacturing in Electronic Devices

Application Background: In electronic devices, graphite electrodes are used in electric arc furnaces, batteries, supercapacitors, and other equipment. Due to their excellent electrical conductivity and high-temperature resistance, graphite electrodes are widely applied in various electronic and electrical devices.

Practical Application of Endless Diamond Wire Cutting Technology:

• High Precision Cutting: Graphite electrodes often require precise cutting to specific dimensions and shapes. Endless diamond wire cutting technology provides high precision, ensuring the electrodes meet design specifications.
• High-Quality Surface Finish: Diamond wire cutting achieves a very smooth cutting surface, reducing the need for further processing and enhancing the performance and lifespan of the electrodes.
• Reduced Material Waste: With minimal material waste during the cutting process, graphite electrode manufacturers can utilize raw materials more efficiently, reducing production costs.

2. Graphite Component Processing in the Nuclear Industry

Application Background: In the nuclear industry, graphite is used as a neutron moderator, structural support, and coolant in reactors. Its high-temperature stability and low neutron absorption cross-section make it a key material in nuclear reactors.

Practical Application of Endless Diamond Wire Cutting Technology:

• Complex Shape Processing: Nuclear reactor components often have complex geometries and strict size requirements. Endless diamond wire cutting technology can handle these complex shapes, ensuring precise manufacturing of the components.
• No Thermal Impact: Graphite components operate in high-temperature environments, requiring high thermal stability. Endless diamond wire cutting technology avoids the heat-affected zones of traditional cutting methods, preserving the material’s original properties.
• High Efficiency Processing: The production of graphite components requires efficient processing methods. Endless diamond wire cutting technology’s high cutting speed and precision significantly enhance production efficiency and shorten the production cycle.

3. Graphite Composite Material Processing in Aerospace

Application Background: In aerospace, graphite composites are used as lightweight, high-strength structural components, such as satellite parts and rocket engine components. The excellent strength-to-weight ratio and high-temperature resistance of graphite composites make them widely used.

Practical Application of Endless Diamond Wire Cutting Technology:

• Precise Cutting: Aerospace components require strict dimensional tolerances and high-precision processing. Endless diamond wire cutting technology meets these requirements, ensuring accurate manufacturing of graphite composite parts.
• High-Quality Surface: The surface quality of graphite composites is crucial for component performance. The smooth cutting surface provided by diamond wire cutting enhances surface quality and reduces the need for further processing.
• Adaptability to Complex Geometries: Aerospace components often feature complex geometries. Endless diamond wire cutting technology can flexibly process these intricate structures to meet design requirements.

4. Graphite Optical Window Processing in Optical Devices

Application Background: Graphite optical windows are used in high-precision optical instruments such as lasers and optical sensors. Graphite is selected for its excellent optical transparency and heat resistance.

Practical Application of Endless Diamond Wire Cutting Technology:

• High Precision Processing: Optical windows require very high processing accuracy and smooth surfaces. Endless diamond wire cutting technology can precisely cut graphite optical windows, ensuring optical performance and surface quality.
• Reduced Thermal Impact: Graphite optical windows are used in high-power optical applications, where thermal impact during cutting may degrade performance. Endless diamond wire cutting technology avoids this issue, ensuring stable window performance.
• Cutting Efficiency: The production of optical devices requires efficient processing methods. Endless diamond wire cutting technology provides high cutting speeds and production efficiency, shortening production cycles.

Case Study: Graphite Electrode Manufacturing in Electronic Devices

Application of Endless Diamond Wire Cutting Technology:

• Before and After Comparison:
  • Traditional Mechanical Cutting: The electrode surface is rough, with noticeable tool marks and uneven cutting edges.
  • Diamond Wire Cutting: The electrode surface is smooth, with clean edges and no tool marks.
• Data Analysis:
  • Traditional Cutting: Cutting precision ±0.1mm, surface roughness Ra 5μm.
  • Diamond Wire Cutting: Cutting precision ±0.05mm, surface roughness Ra 0.5μm.
  • Improvement: Cutting precision improved by 80%, surface roughness reduced by 90%.

Technical Improvement Effects: Endless diamond wire cutting significantly enhances electrode precision and surface quality, reduces subsequent processing steps, and increases production efficiency.
